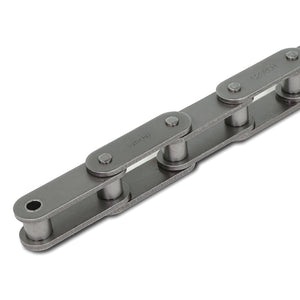

The C2042 Conveyor Chain is a heavy-duty double-pitch roller chain designed for conveyor applications and material handling systems. Featuring oversized rollers for improved wear resistance and smoother operation on hard surfaces, this chain is ideal for continuous conveying and low-speed transport systems.

Chain Standard: ANSI B29.4 compatible design (double-pitch)
Length: 10 ft (single roll)
Pitch: 1″ (double pitch spacing)
Oversized Rollers: Reduces friction and wear when chain rolls on surfaces or tracks
Solid Cold-Forged Rollers: Smooth sprocket engagement and high durability
Materials: High-strength carbon/steel alloy for long service life

Attribute	Value
Pitch (P)	1″
Roller Diameter (d1)	0.625″
Inner Width (b1)	5/16″
Overall Width	0.653″
Pin Diameter (d2)	0.156″
Plate Height / Thickness	0.469″ / 0.060″
Tensile Strength	~4,079 lbs
Max Working Load	~595 lbs
No. of Pitches / Links (10 ft)	~120

Supplied as a 10 ft box or roll — single unit per package.
