MP-28 Pillow Block Belts

MP-28 Pillow Block Belts

MP-28 Sealmaster Pillow Block Ball Bearing Unit - Two Bolt Base, 1-3/4 in Bore, Cast Iron Material, Medium Duty, Non-Expansion Bearing (Fixed) PRODUCT DETAILS Felt Labyrinth Seal Type DESCRIPTION Dimensionally... MP-28 Sealmaster Pillow Block Ball Bearing Unit - Two Bolt Base, 1-3/4 in Bore, Cast Iron Material, Medium Duty, Non-Expansion Bearing (Fixed) PRODUCT DETAILS Felt Labyrinth Seal Type DESCRIPTION Dimensionally...
$379.43
Availability: Many In Stock

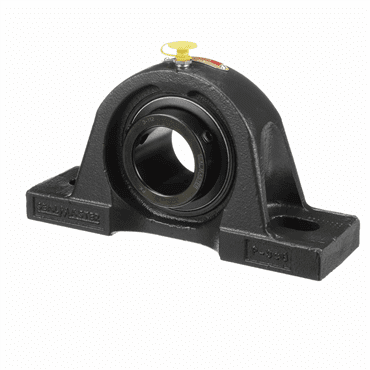

MP-28 Sealmaster Pillow Block Ball Bearing Unit - Two Bolt Base, 1-3/4 in Bore, Cast Iron Material, Medium Duty, Non-Expansion Bearing (Fixed)

PRODUCT DETAILS

  • Felt Labyrinth Seal Type

DESCRIPTION

  • Dimensionally interchangeable with many competitive units.

FEATURES

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation



General Specifications

UPC: 662461013816 Weight: 9.25 LB
Packaged Length: 8.88 Inches Packaged Width: 5.94 Inches
Packaged Height: 2.63 Inches HTC: 8483.20.8040
Country of Origin: United States of America

Dimensions

Base Width (in): 2.625 in Overall Height (in): 4.625 in
Overall Length (in): 8.75 in Bolt Size (in): 0.625 in
Bore Size - Inch: 1.7500 in Bolt Center Min (in): 5.438 in
Base to Center Height (in): 2.3125 in Centerline to Front Face (in): 1.281 in
Foot Height (in): 0.813 in Inner Race Length (in): 2.031 in
Bolt Center Max (in): 6.813 in Inner Ring OD (in): 2.469 in

MP-28 Sealmaster Pillow Block Ball Bearing Unit - Two Bolt Base, 1-3/4 in Bore, Cast Iron Material, Medium Duty, Non-Expansion Bearing (Fixed)

PRODUCT DETAILS

  • Felt Labyrinth Seal Type

DESCRIPTION

  • Dimensionally interchangeable with many competitive units.

FEATURES

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation



General Specifications

UPC: 662461013816 Weight: 9.25 LB
Packaged Length: 8.88 Inches Packaged Width: 5.94 Inches
Packaged Height: 2.63 Inches HTC: 8483.20.8040
Country of Origin: United States of America

Dimensions

Base Width (in): 2.625 in Overall Height (in): 4.625 in
Overall Length (in): 8.75 in Bolt Size (in): 0.625 in
Bore Size - Inch: 1.7500 in Bolt Center Min (in): 5.438 in
Base to Center Height (in): 2.3125 in Centerline to Front Face (in): 1.281 in
Foot Height (in): 0.813 in Inner Race Length (in): 2.031 in
Bolt Center Max (in): 6.813 in Inner Ring OD (in): 2.469 in
